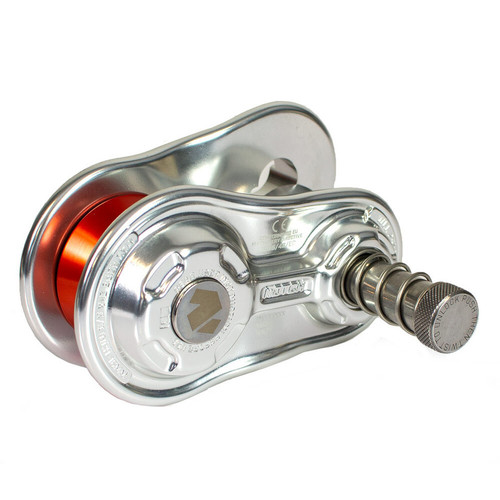

The Notch 5/8” Rigging Block is a medium sized lightweight arborist block accepts working lines up to 5/8” (16mm) diameter.
Features & Benefits:
- 25 kN WLL / 125 kN MBS
- Hot forged aluminum side plates with rope friendly rounded cheeks
- Precision CNC machined aluminum sheaves with wide bend radii
- Low profile, secure, easy to-open captive screw pin lock High wall, full diameter, improved anchor sling protection
- Wide, concave upper sheave accepts 1” anchor slings
- Flared sideplates reduce twisting in complex rigging scenarios
- WORKING LOAD LIMIT: (WLL) 25 kN (5,620 lbs.)
- MBS: 125kN (28,100 lbs.)
- MAX WORKING LINE DIAMETER: 5/8 in (16mm)
- MAX SLING DIAMETER: 1in (25mm)
- UPPER SHEAVE DIAMETER: 1.95 in (50mm)
- LOWER SHEAVE DIAMETER: 2.4 in (61mm)
- HEIGHT: 6.2 in (158mm)
- WIDTH: 3.4 in (87mm)
- WEIGHT: 3.1 lbs. (1.4 kg)
- SIDEPLATE MATERIAL: Aluminum
- SHEAVE MATERIAL: Aluminum
- AXLE MATERIAL: Stainless Steel
